Items needed to install a handrail to a concrete wall: –
143 Fitting (34 – 48mm)
Handrail tube (34 – 48mm)
Hammer drill and appropriate drill bit
appropriate fixings – we recommend using wall anchors
Spanner
Allen key

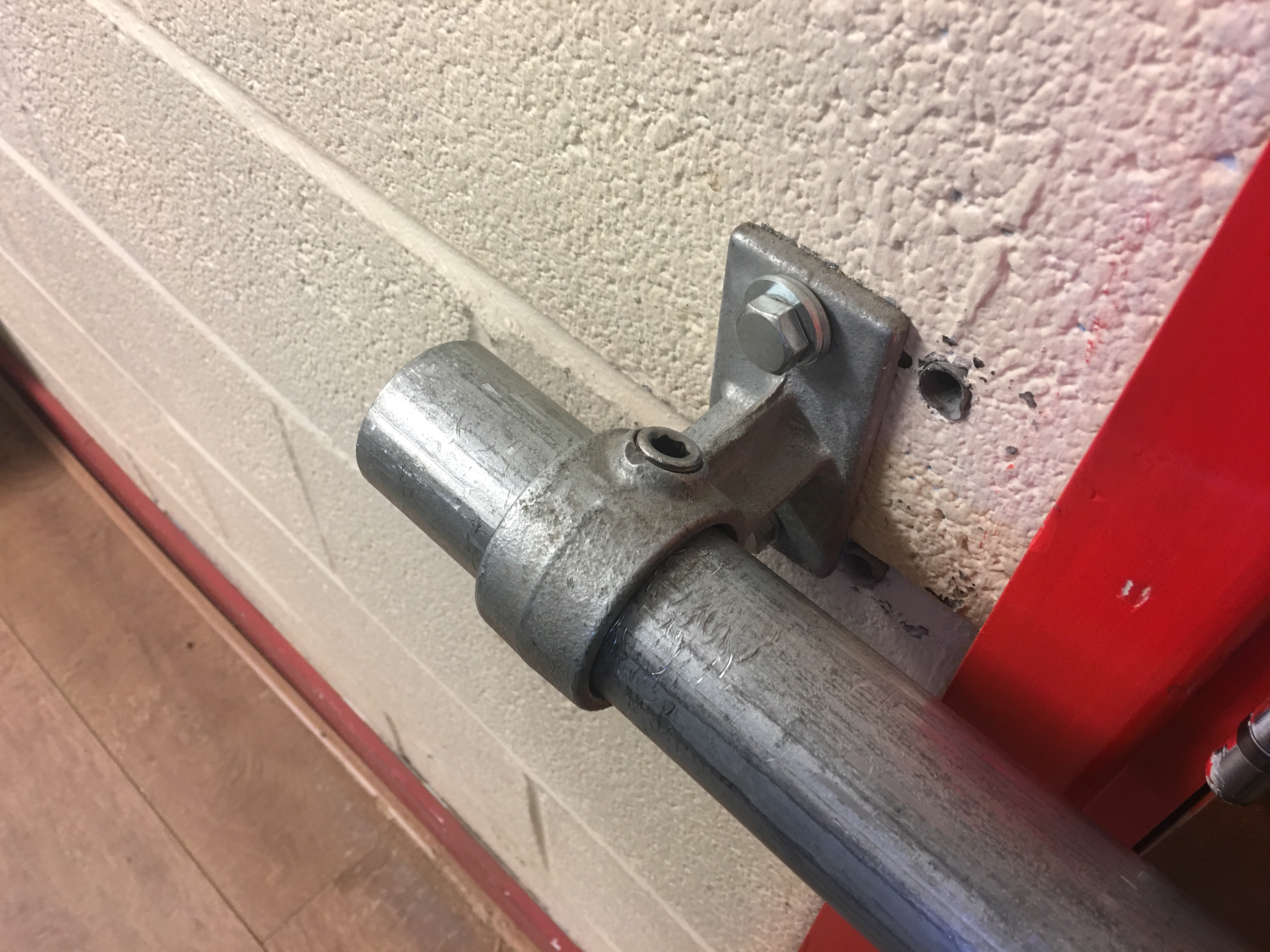

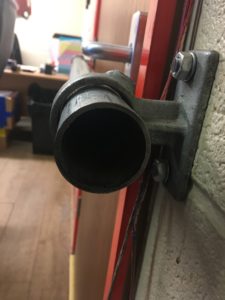

The 143 fitting allows the tube to be passed through the fitting, which makes fixing a handrail to a wall simple.
To install the handrail, the distance needs to be calculated for the tube. Then mark out where the fitting are going to be located. We recommend a 143 fitting every 1.5 meters, and the height of the handrail between 1 and 1.2 metres, although this can vary with the individuals needs. Once the fittings are fixed to the wall, pass the tube through each fitting and tighten the grub screw with the allen key provided.

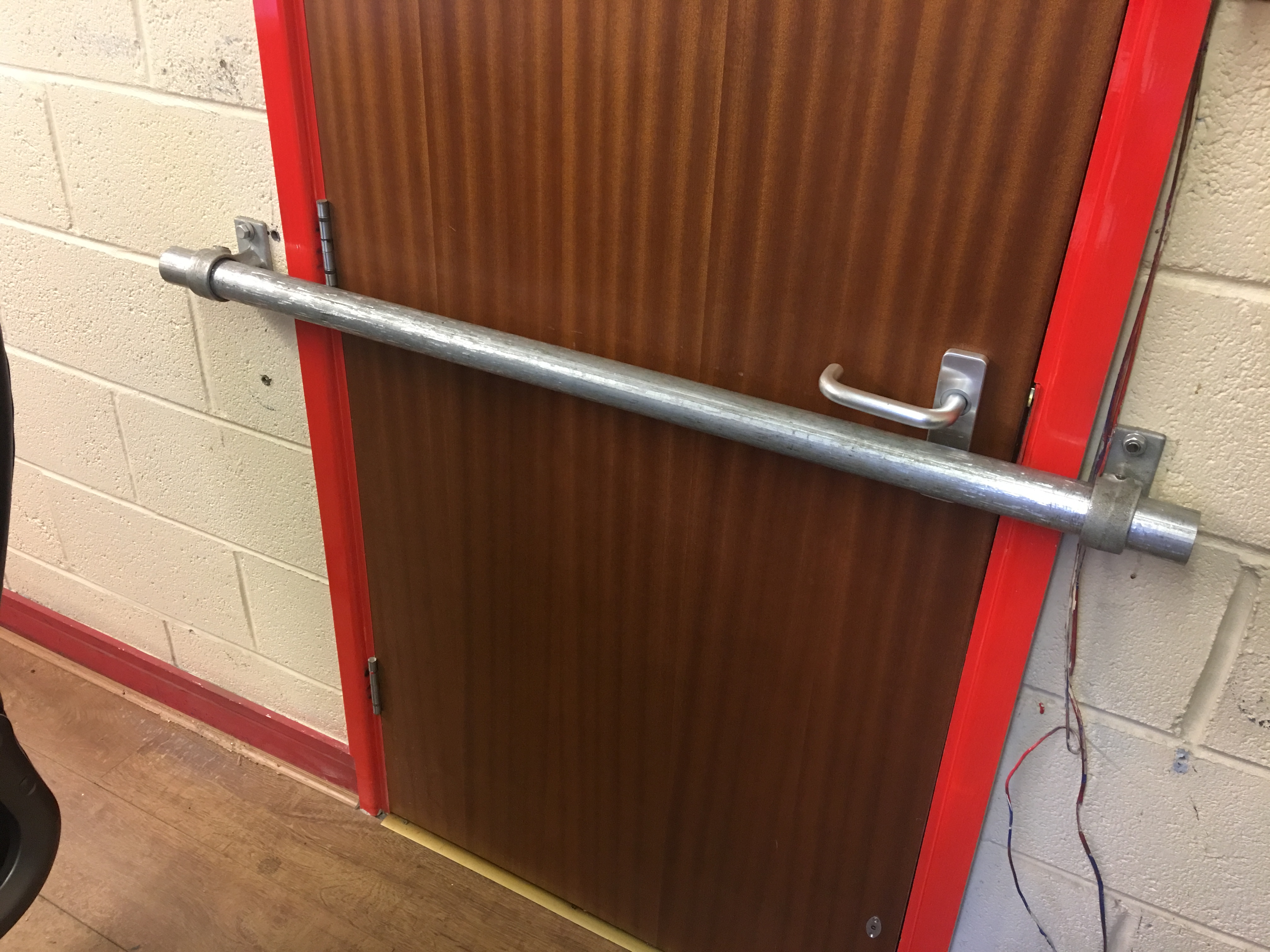

The 143 fittings and tube can also be used for security purposes, as used here.
For help and guidance, please contact our team on 01922 701922
